• 3.92 axle ratio
• Anti-spin differential rear axle

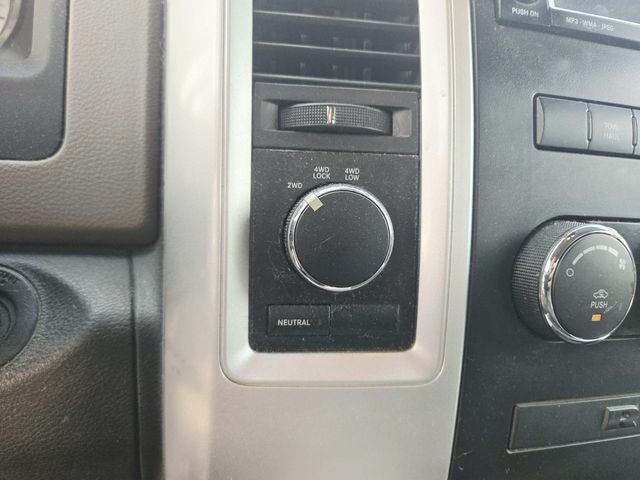

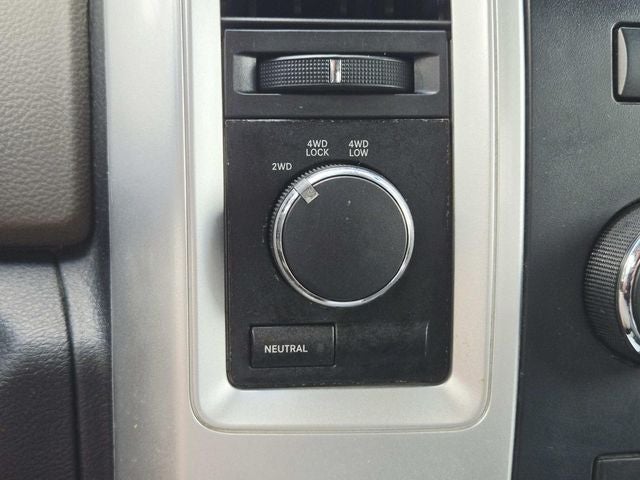

• Electronic shift-on-the-fly part-time transfer case
• Four wheel drive
• 700-amp maintenance-free battery
• 160-amp alternator
• Tip start electronic starting feature
• 7-pin wiring harness
• Trailer tow w/4-pin connector wiring
• Class IV receiver hitch
• Tow hooks
• 6'4" pickup box
• HD front shock absorbers
• Extra HD rear shock absorbers
• Front stabilizer bar
• Rear stabilizer bar
• Pwr rack & pinion steering
• Anti-lock 4-wheel disc brakes
• (32) gallon fuel tank

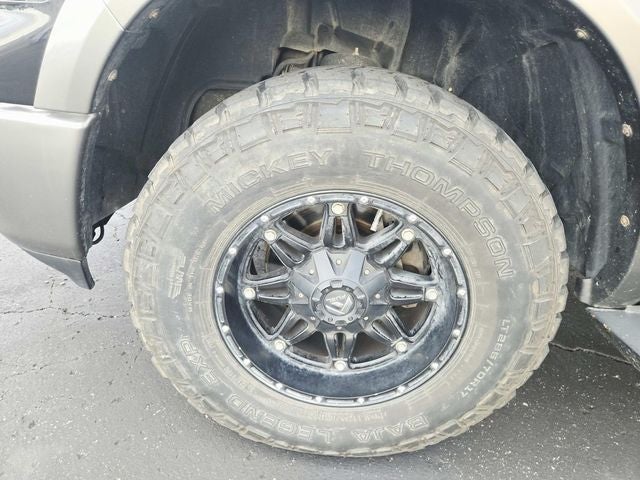

• 17" x 7" aluminum wheels
• LT275/70R17C all-terrain OWL tires
• (4) conventional doors
• 17" steel spare wheel
• Full-size spare tire
• Tire carrier winch
• Painted front bumper
• Front bumper sight shields
• Painted rear bumper
• Body-color upper front fascia
• Front wheel air deflectors
• Rear wheel air deflectors
• Accent fender flares
• Automatic headlamps
• Quad beam halogen headlamps
• Fog lamps
• Underhood lamp
• Black folding pwr heated auto-dimming outside mirrors -inc: courtesy lamps, turn signals
• Deep tinted windows
• Pwr sliding rear window
• Variable intermittent windshield wipers
• Cargo lamp
• Black door handles
• Front license plate bracket

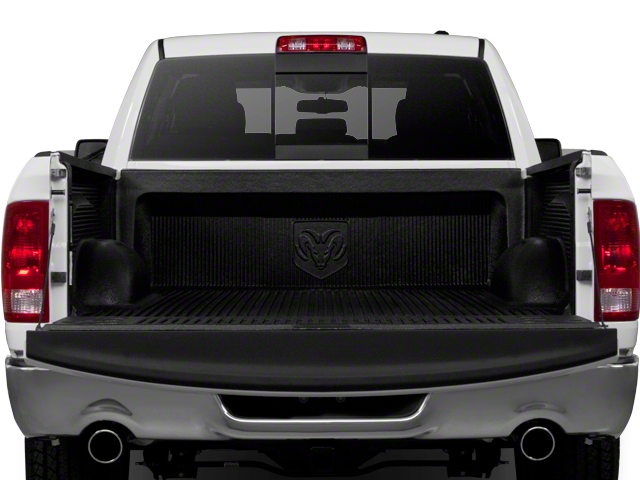

• Locking tailgate
• Body color fuel filler door

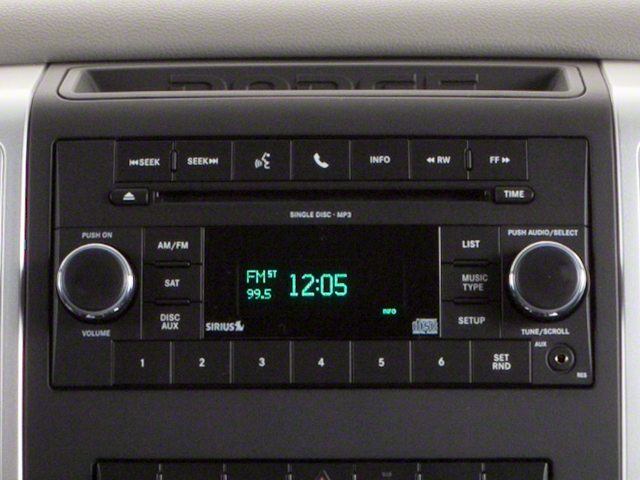

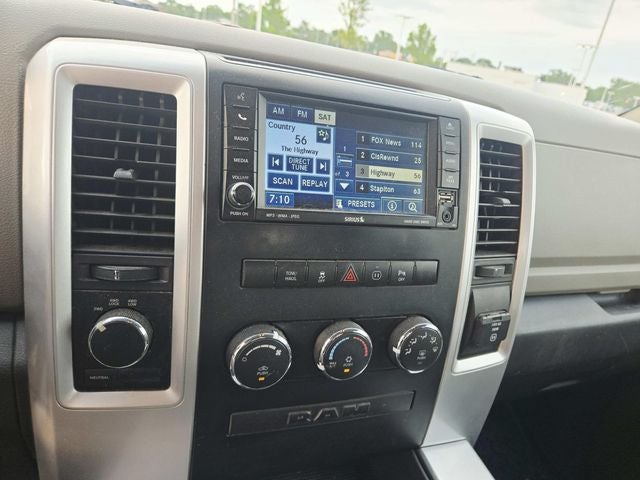

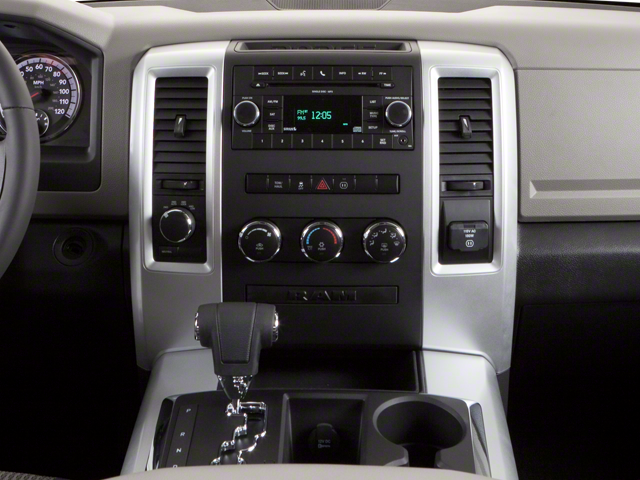

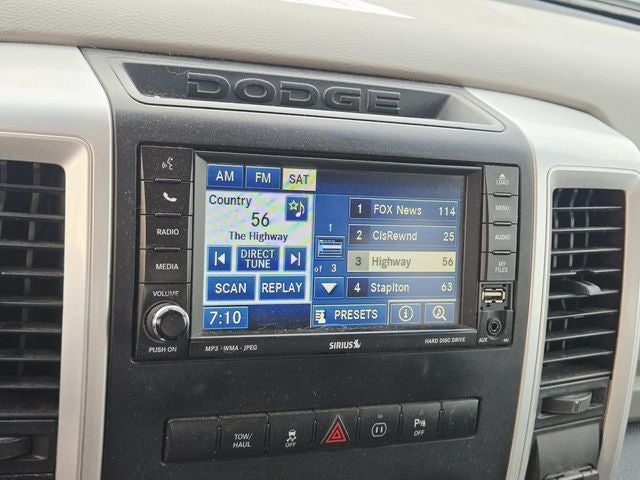

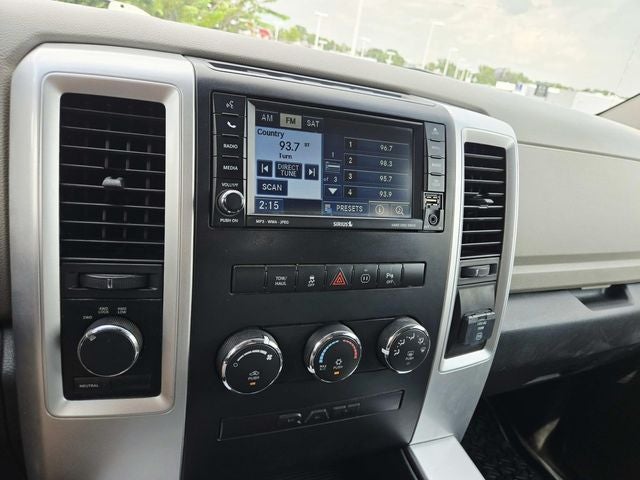

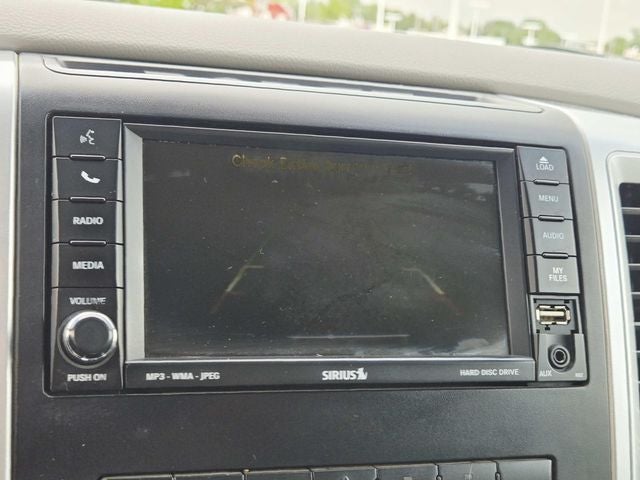

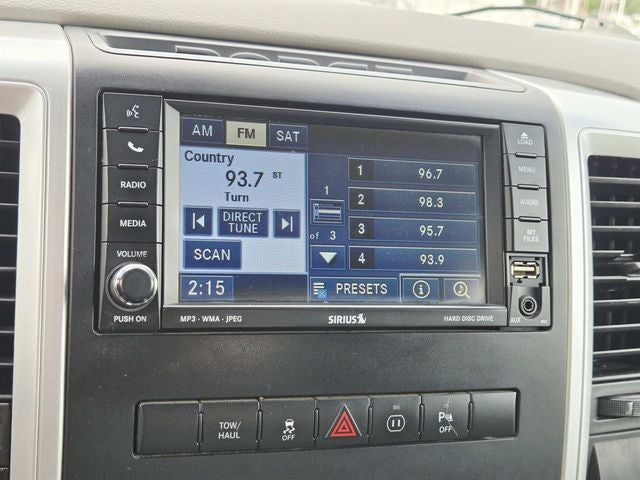

• Media center 130 -inc: AM/FM stereo, CD/MP3 player

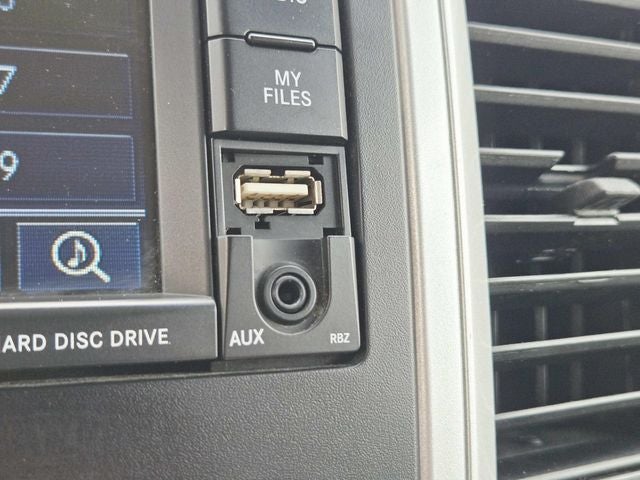

• Audio jack input for mobile devices
• SIRIUS satellite radio -inc: 1-year radio service *SIRIUS radio service may not be available in some areas*
• (6) speakers
• Fixed long mast antenna

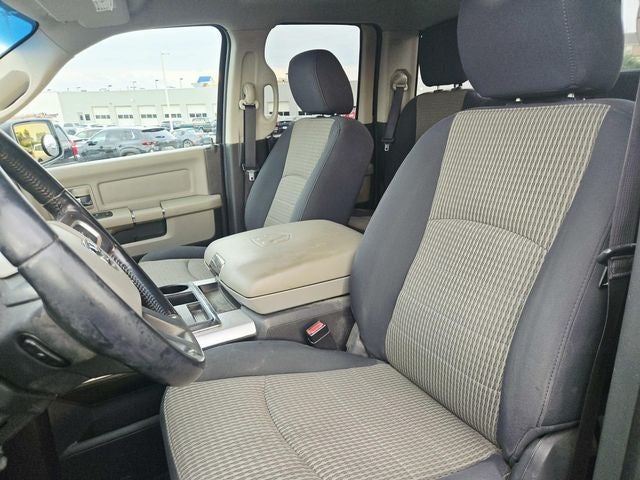

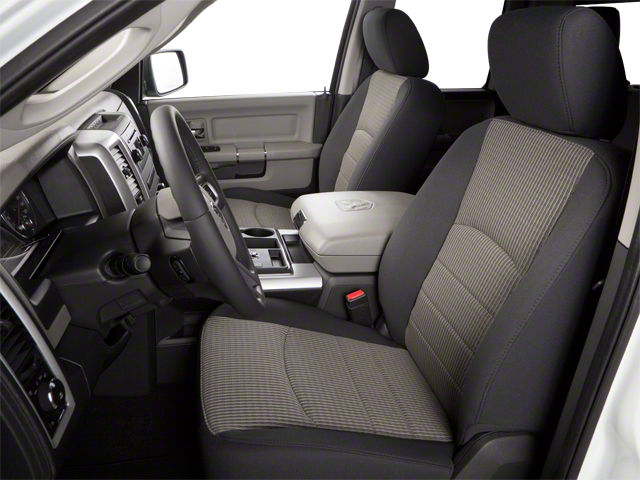

• Premium cloth low back bucket seats

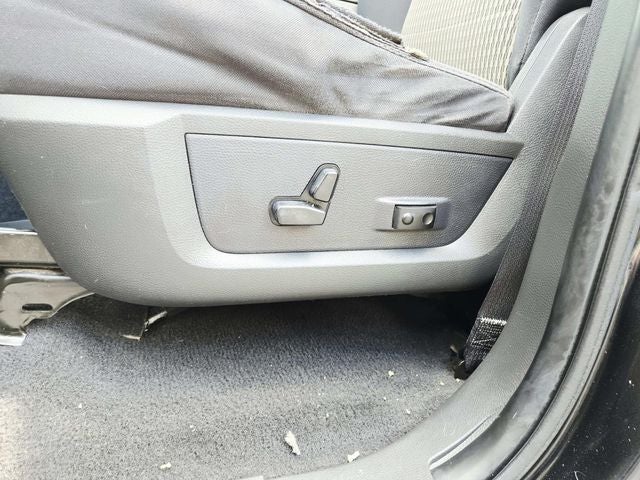

• 10-way pwr driver seat
• Pwr lumbar

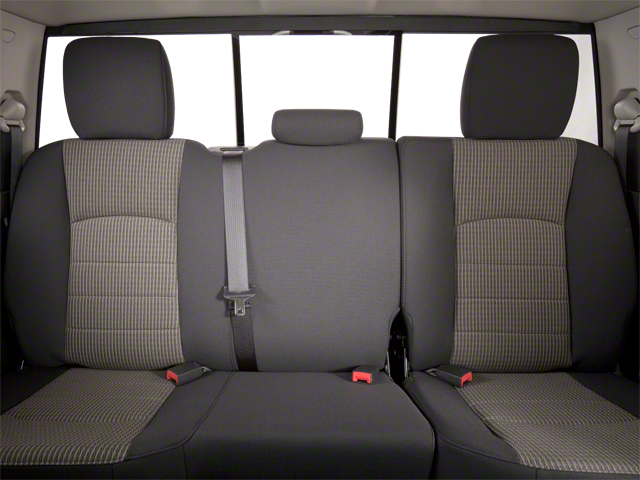

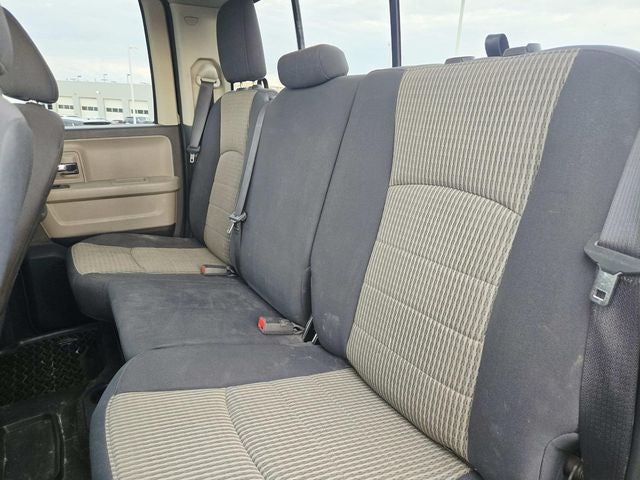

• 60/40 split-fold rear bench seat
• Carpeted floor covering
• Front/rear rubber floor mats
• Floor tunnel insulation

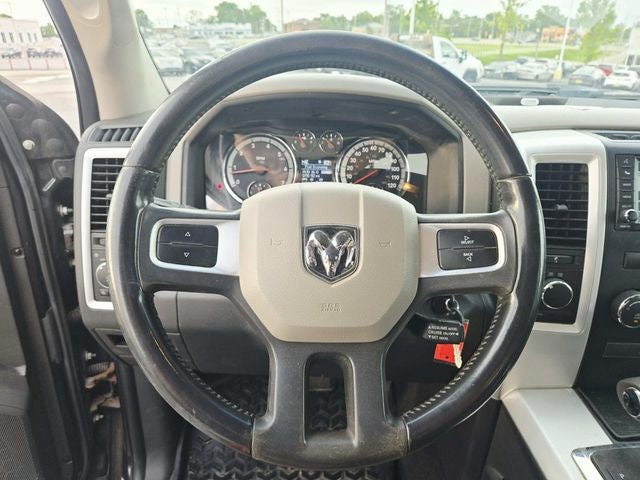

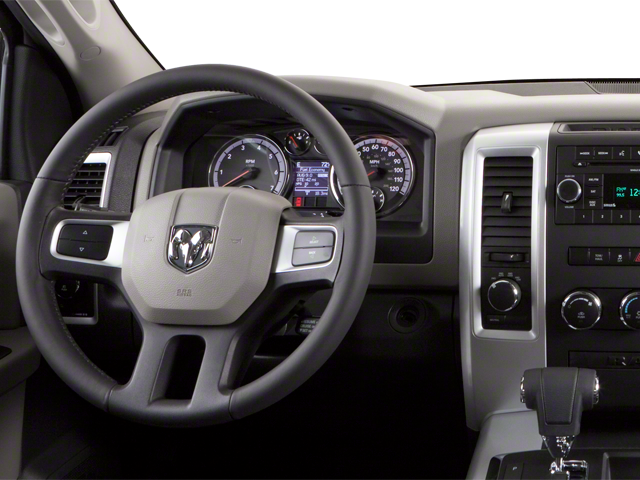

• Leather-wrapped steering wheel
• Steering wheel audio controls
• Tilt steering column

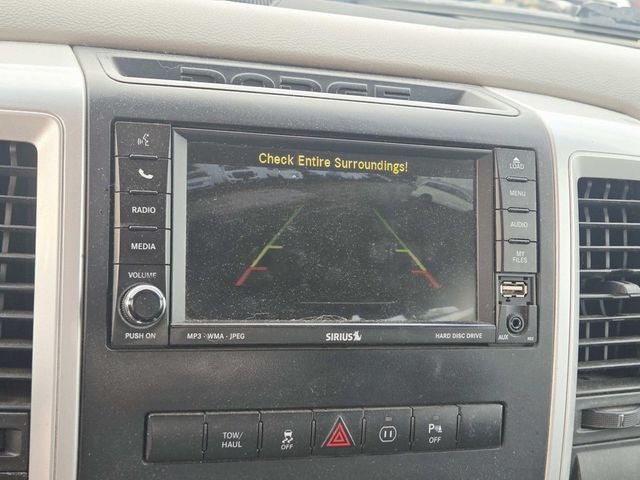

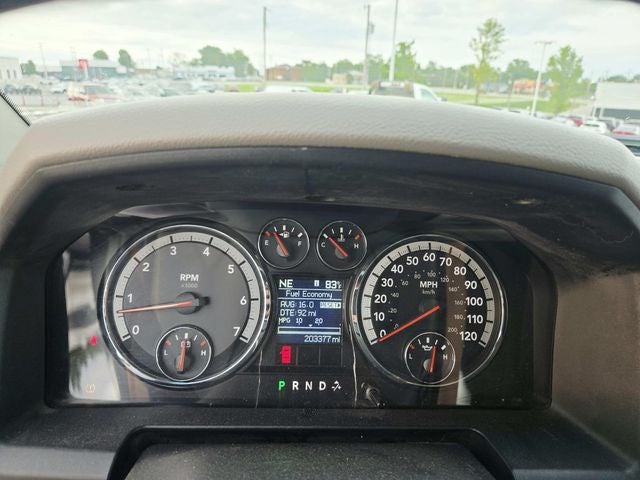

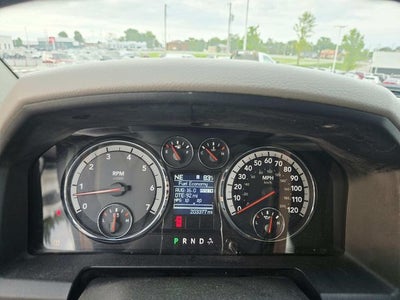

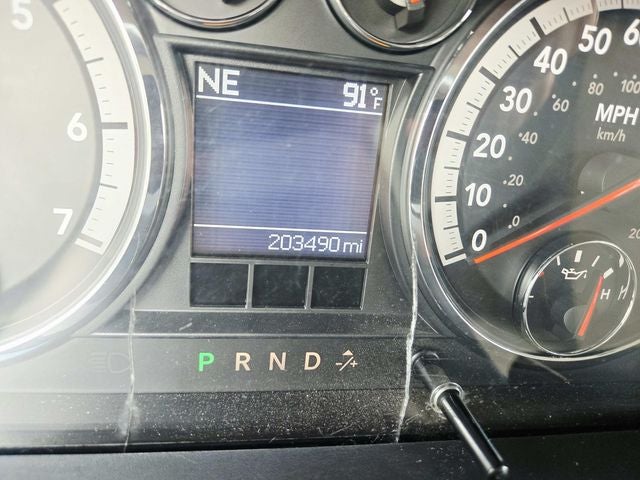

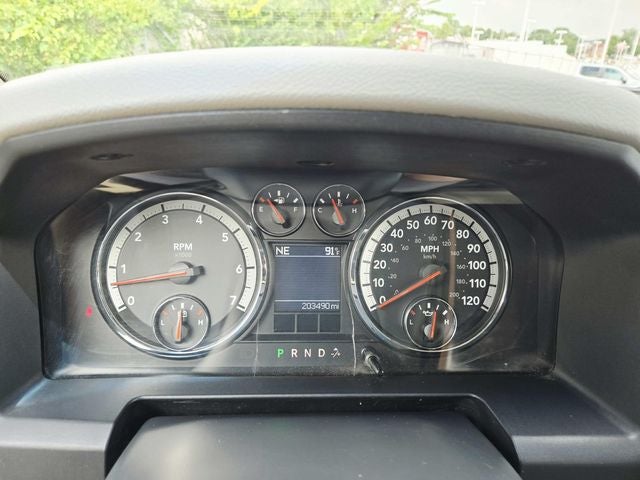

• Instrument cluster w/display screen -inc: temp & compass gauge, trip computer, vehicle info center
• Speed control

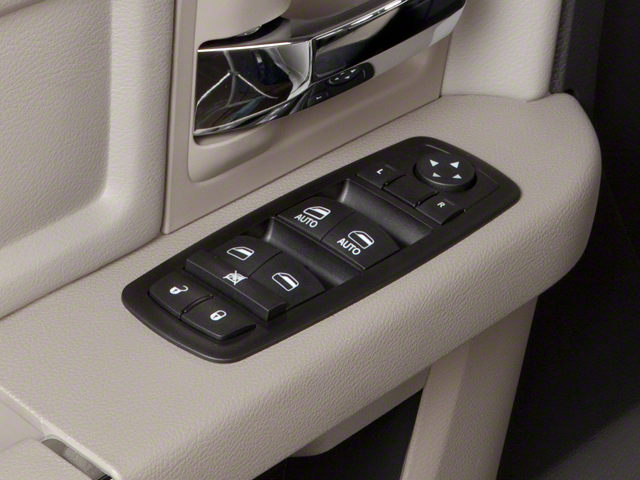

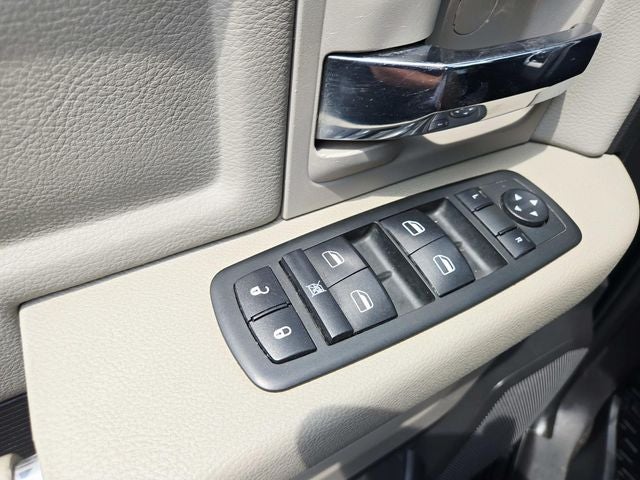

• Pwr front windows w/1-touch up/down
• Pwr door locks
• Pwr accessory delay
• Remote start
• Remote keyless entry
• Universal garage door opener w/controls on the overhead console
• Sentry Key theft deterrent system
• Security alarm system

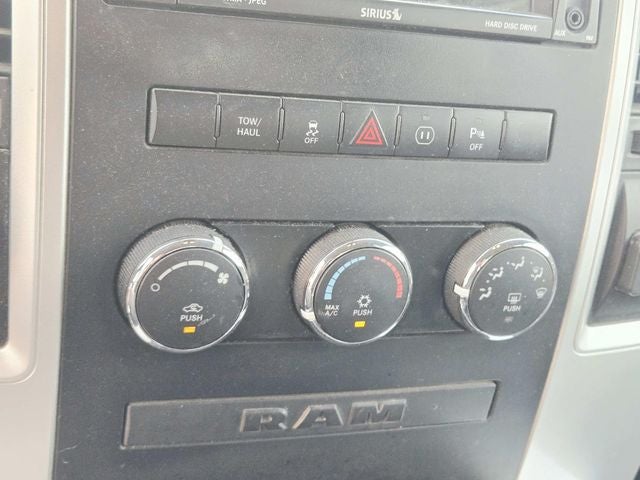

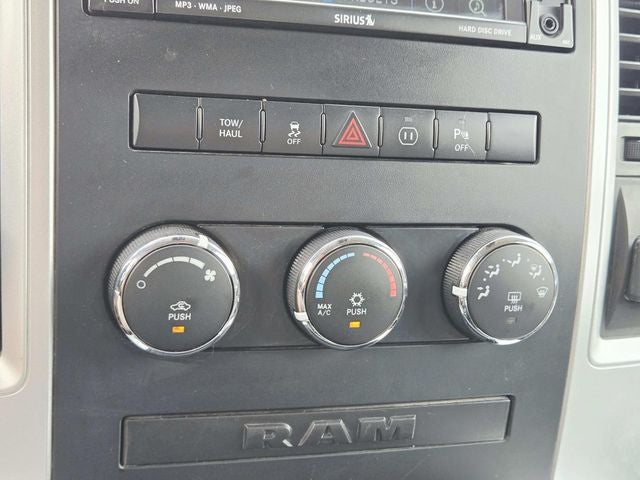

• Air conditioning
• Color-keyed instrument panel bezel
• 12V aux pwr outlet
• 115V aux pwr outlet

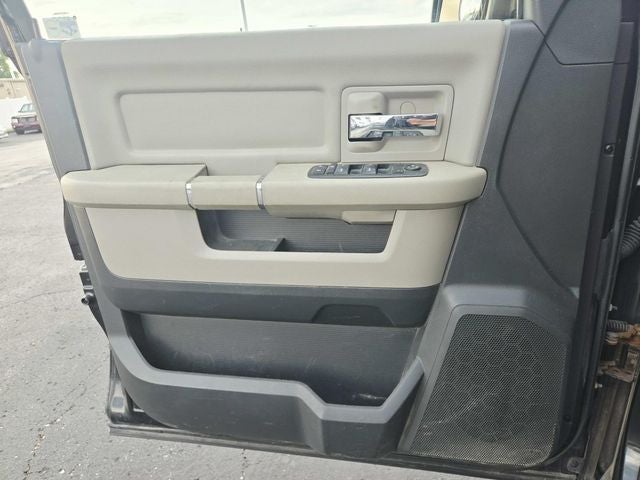

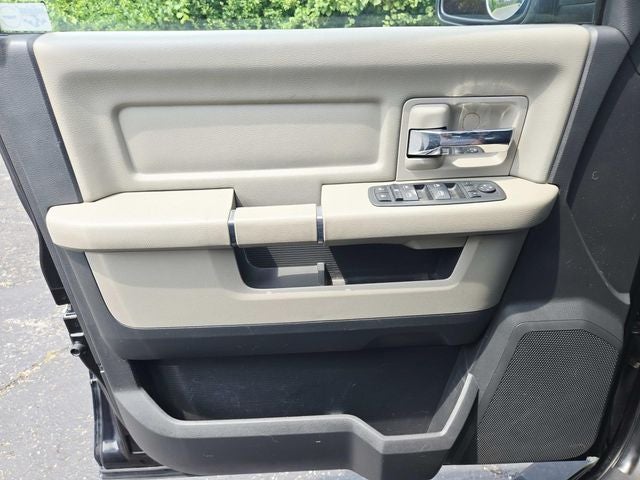

• Premium vinyl door trim w/map pocket
• Auto-dimming rearview mirror

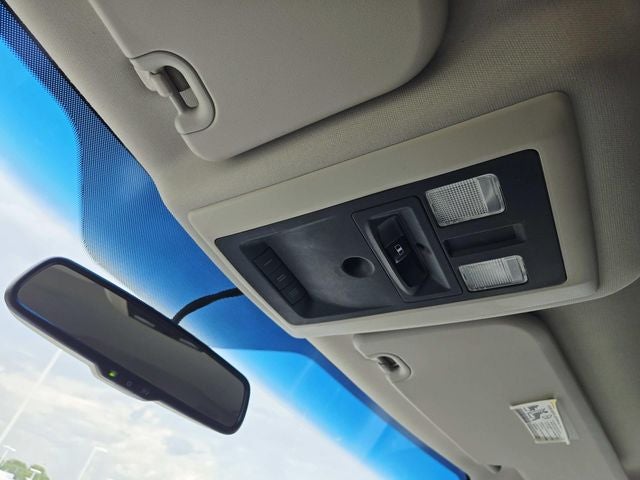

• Overhead console
• Dual assist handles
• Illuminated visor vanity mirrors
• Rear dome lamp w/on/off switch

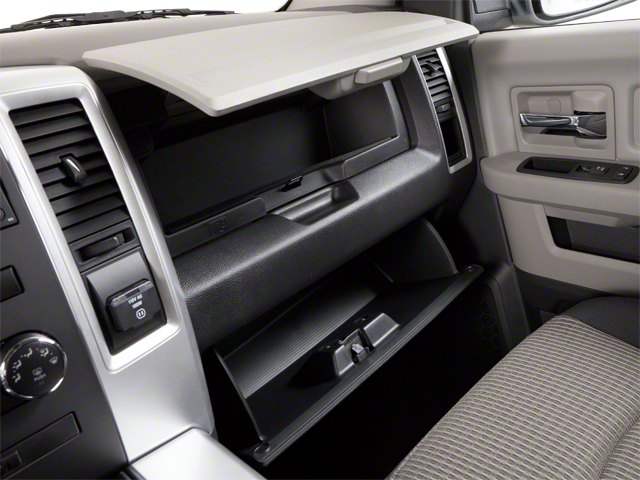

• Glove box lamp
• Ash tray lamp

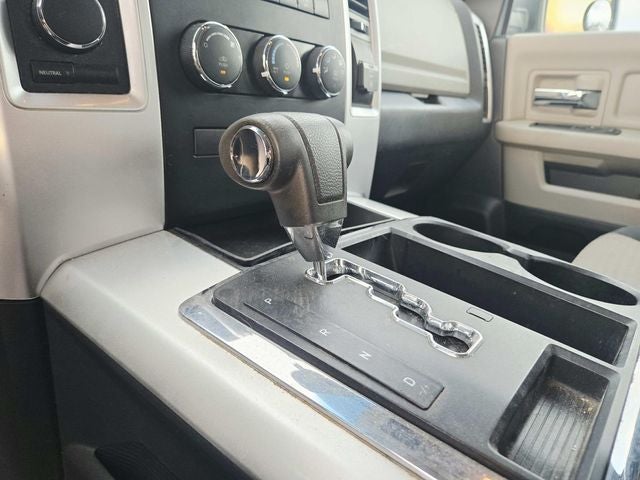

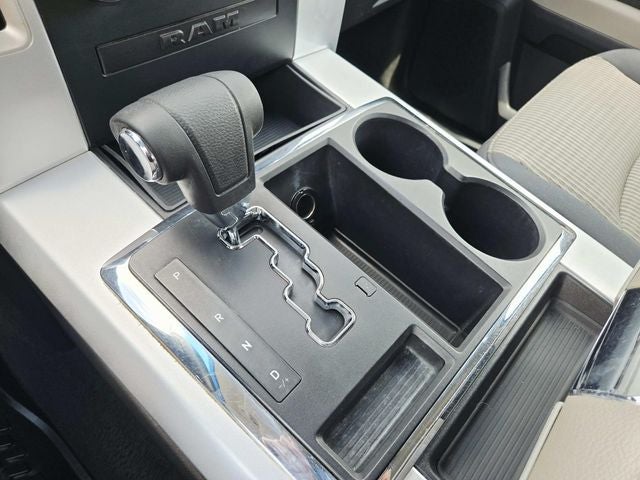

• Floor-mounted auto shift lever
• Urethane shift knob
• Rear under seat storage compartment
• Fold-flat load floor storage

• Brake assist
• Electronic stability program
• Driver/front passenger multistage airbags
• Front seat side-impact airbags
• Front/rear side curtain airbags
• Front seat belt height adjusters
• Child safety door locks
• Tire pressure monitor w/display
• Dual note horn

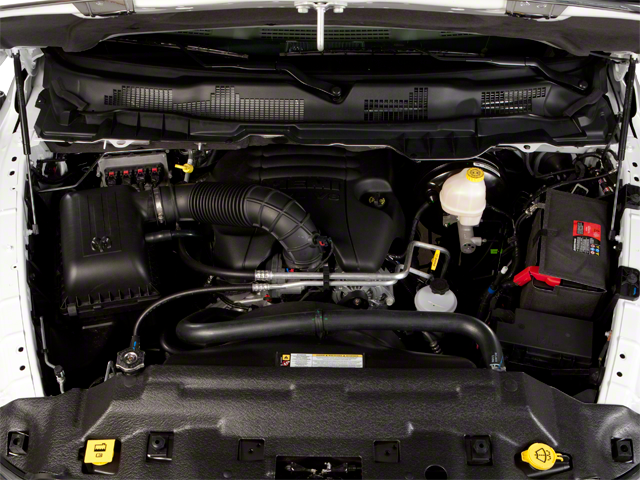

5.7L V8 HEMI MULTI-DISPLACEMENT VVT ENGINE

• electronically controlled throttle
• HD engine cooling

• CD player
• Air Conditioning
• Power steering
• Power windows
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Overhead airbag
• Rear anti-roll bar
• Brake assist
• Electronic Stability Control
• Delay-off headlights
• Fully automatic headlights
• Anti-Spin Differential Rear Axle
• Exterior Mirrors Heating Element
• Heated door mirrors
• Power door mirrors
• Rear step bumper
• Driver door bin
• Front & Rear Rubber Floor Mats
• Tachometer
• Tilt steering wheel
• Voltmeter
• 32 Gallon Fuel Tank
• Passenger door bin
• Class IV Receiver Hitch
• Variably intermittent wipers

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Total Cooling System Capacity (qts): 10.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 3012
• Curb Weight - Rear (lbs): 2186

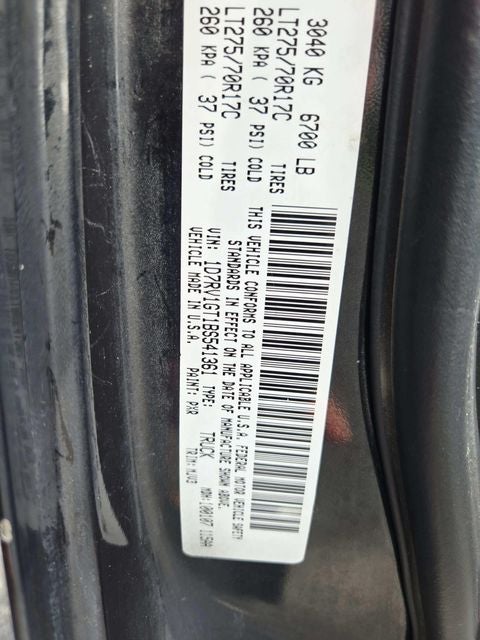

• Gross Vehicle Weight Rating Cap (lbs): 6700
• Gross Combined Wt Rating (lbs): 12500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1065
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-link coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Rear: Solid
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Front: 3.92
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.8 x 0.87
• Tires
• Front Tire Order Code: TTL
• Rear Tire Order Code: TTL
• Spare Tire Order Code: TBB
• Front Tire Size: LT275/70R17C
• Rear Tire Size: LT275/70R17C
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: Variable
• Steering Ratio (:1), At Lock: 3.3
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.0
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 75.7
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 143.7
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 57.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.7
• Second Leg Room (in): 34.7
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 62.9
• Summary

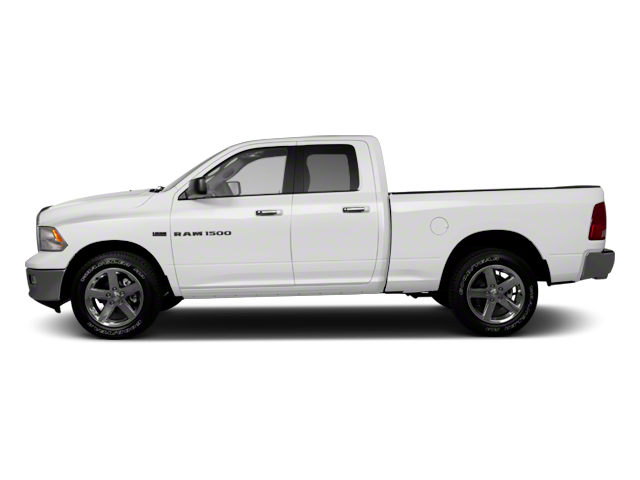

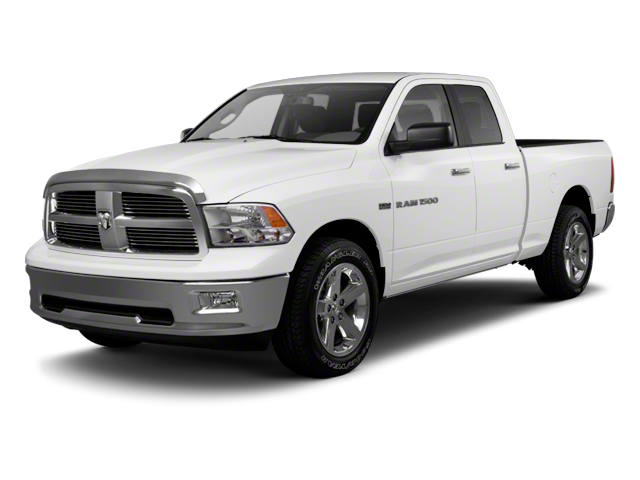

• Vehicle Name: Ram 1500
• Body Style: Quad Cab 6.3' Bed
• Body Code: 140.5" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
